‘14-'21 Police Electra Glide (FLHTP) Sony XAV-AX7000 Plug & Play Audio Bundle


Notify me when this product is available:

It's time to put an amazing audio system in your new 2014-2021 Harley-Davidson® Police Electra Glide (FLHTP) for a fraction of the cost you'd get charged from your local dealer. Our bundle is completely plug and play and includes everything you need to get rocking on your '14-'21 Police Electra Glide - and even better - you can install it yourself in about 2 hours.

Special thanks to our good friend Josh S (Police edition rider!) for helping make this bundle possible!

Our bundle, being completely plug and play, requires no cutting or splicing of factory wires and comes with our brand new Police Edition Wiring Harness - therefore protects your factory Harley-Davidson warranty.

View the Police Harness Install Guide here: Police Harness Install Written Guide

Here is the complete '14-'21 Police Electra Glide Install Video


Our Police harness includes power and ground that will need to be run back to the battery by removing your gas tank and running the power and ground wires down your factory wiring channel. Don't worry, it's easier than you think! Pro tip: Try to be low on fuel when removing your gas tank.

When done, you will have added incredible audio performance, navigation, Apple CarPlay/AndroidAuto, a 7" touch screen radio, fairing speakers, an antenna, Bluetooth, dual USB connection and will be Satellite (Sirius/XM) radio ready.

New to the Sony XAV-AX7000 is improved audio performance, including an onboard 400 watt, 4-channel amplifier, weather-sealed buttons and a weather proof screen!

Looking to add Sirius/XM? This unit is also often paired with our satellite tuner: Sirius/XM Tuner


Adding our optional lighted hand control variant? The video below shows you step-by-step how to install the Harley-Davidson lighted hand control switches included in our "with hand controls switches" bundle:

Here's what our 2014-2021 Police Electra Glide Sony XAV-AX7000 Plug & Play Audio Bundle Includes:

  • Our Popular Sony XAV-AX7000 Plug & Play Bundle

    Packed with Apple CarPlay and Android Auto, our Sony XAV-AX7000 bundle is a completely prewired plug and play bundle, ready to be dropped in your '19-'21 Electra Glide Standard and plugged in to the factory harness. The built in 400 watt, 4-channel internal amp will satisfy your desire for loud tunes and access to navigational apps like Apple Maps, Google Maps & Waze will make sure you always get where you need to go - on time. The Sony XAV-AX7000 also packs weather-sealed buttons and an improved weather-proof, anti-glare screen!

  • Sony 6.5" Fairing Speakers Variant Option

    Step up to a new level of sonic performance with Sony's 6.5" 2-way speaker, which are packed with a rigid, reinforced special Kevlar woofer cone that delivers focused midrange and strong mid-bass punch, even at high volumes.
  • NEW: Rockford 6.5" TMS65 Speaker Variant Option

  • Two HD Speaker Jumper Wire Harnesses

    Two of these handy harnesses from Harley-Davidson allow a plug and play connection from your bikes fairing harness, through the speaker pods, terminating at the speaker.

         Harley-Davidson Speaker Jumper Harnesses
  • J&M In-Fairing AM/FM/WB Antenna

    You're gonna want to listen to the radio. This makes it happen and hides the antenna in your fairing.

    J&M In Fairing Antenna

  • Lighted Harley-Davidson Hand Control Switches (optional variant)

    Enjoy lighted hands-free control of your radio with these factory Harley-Davidson lighted hand control switches
    Harley-Davidson Lighted Handlebar Control SwitchesHarley-Davidson Lighted Handlebar Control SwitchesHarley-Davidson Lighted Hand Control Switches

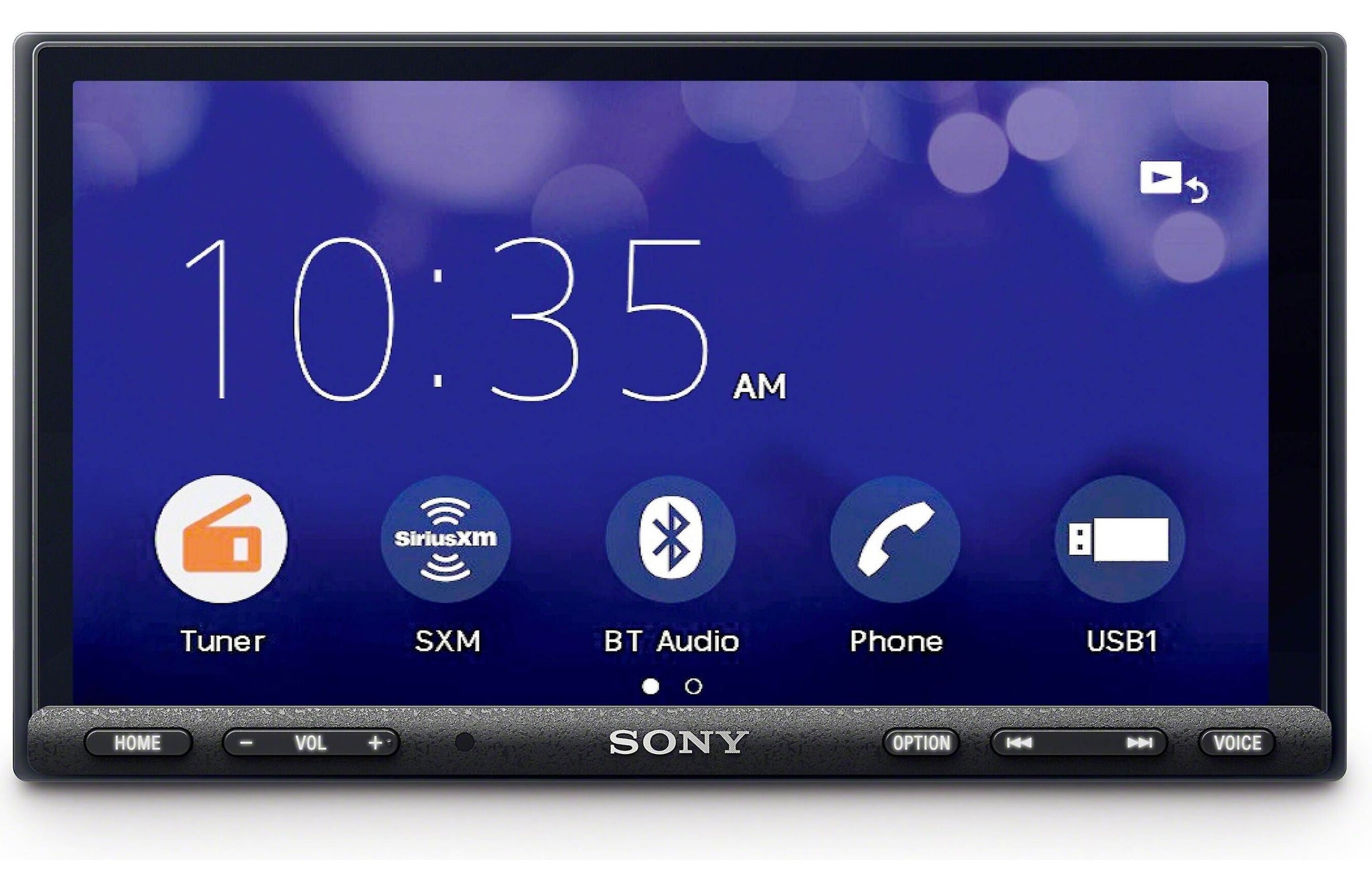

Sony Product Highlights:

  • digital multimedia receiver with AM/FM tuner
  • 7" anti-glare capacitive touchscreen radio
  • built-in internal amp (45 watts RMS/100 peak x 4 channels)
  • works with Apple CarPlay and Android Auto
  • plays FLAC files on USB drives
  • Bluetooth hands-free calling and audio streaming
  • weather-sealed buttons

Smartphone Features:

  • Pandora and Spotify control with iPhone and Android
  • Siri control

Audio/Video Features:

  • plays media from USB memory devices
  • 10-band equalizer with digital time alignment and EXTRA BASS
  • Dynamic Stage Organizer (DSO) compensates for low speaker positions
  • subwoofer controls


  • compatible with SiriusXM satellite radio tuner
  • inputs: dual rear USB inputs, rear-view camera input
  • outputs: 5-channel preamp outputs (5-volt front, rear, subwoofer)

Other Sony XAV-AX7000 Info:

  • subwoofer direct connection (run a single sub off a single rear channel)
  • CTA-2006 compliant
  • fits double-DIN dash openings
  • warranty: 3 years which is handled through Fat Head Cycles
  • Our 60-day no-questions-asked return policy

Additional Metra 95-7000 Features:

  • Axxess interface and harness included and prewired, no need to purchase separately
  • Designed and manufactured with precision tolerances
  • Gapless fit between the dash and the kit
  • Factory matched texture style
  • High-grade ABS plastic construction
  • Color: Black
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

What's in the Box:

  • Digital media receiver w/ 7" touchscreen monitor (15A fuse)
  • Metra 95-9700 Double DIN Dash Kit
  • Police Electra Glide Wiring Harness
  • Wiring harness (prewired and maintains hand controls)
  • Remote control (RM-X170)
  • CR2025 3V battery (installed in remote)
  • 52" USB extension cable
  • Microphone w/ bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
  • Operating Instructions
  • Warranty Sheet
  • Owners Manual

 Sony 6.5" Fairing Speakers Highlights:

  • 6-1/2" 2-way car speakers (pair)
  • mica reinforced cellular (MRC) Kevlar woofer with rubber surround
  • 1" synthetic fiber dome tweeter
  • grilles included
  • handles up to 110 watts RMS (320 watts peak power)
  • frequency response: 32-30,000 Hz
  • sensitivity: 88 dB
  • top-mount depth: 2-5/16"
  • warranty: 3 years

In the Sony 6.5" Fairing Speaker box:

  • Two 2-way speakers
  • 2 Grilles
  • 2 Grille frames
  • Eight 1-1/8" Self-tapping screws
  • Instructions (English/ French/ Spanish/ German/ Italian)
  • Warranty information
  • Template on box
  • Sony Owners Manual
